Construction equipment OTR rim for Grader China OEM manufacturer

Short Description:

We are the OEM rim supplier for the big names like Caterpillar, Volvo, Liebherr, John Deere and XCMG. We can also supply rims for Komatsu, Hitachi, Doosan, Bell and JCB. Our product HYWG OTR rims have been used a lot for many graders, wheel loaders, articulated hauler and dump trucks. OTR rim is critical for vehicles lifetime and operating efficiency, a good OTR rim can carry massive weight and help the vehicles run smoothly and efficiently. It’s very important for a OTR vehicle to have strong, trusted and reliably OTR rim. Our product HYWG OTR rim is a good choice for vehicle owners because we have proven quality, good price and full range of rims for most of the OTR vehicles.

Send email to us

Product Detail

Product Tags

What is Construction equipment rim?

Construction equipment rim is one kind of OTR rim and is used for construction machinery like backhoe loader, grader, wheel loader, articulated hauler etc. We are the OEM OTR rim supplier for the big names like Caterpillar, Volvo, Liebherr, John Deere and XCMG. Each month tens of thousands of HYWG OTR rims are mounted to CAT, Volvo, Liebheer and XCMG wheel loader, graders and haulers.

How many kinds of construction equipment rims?

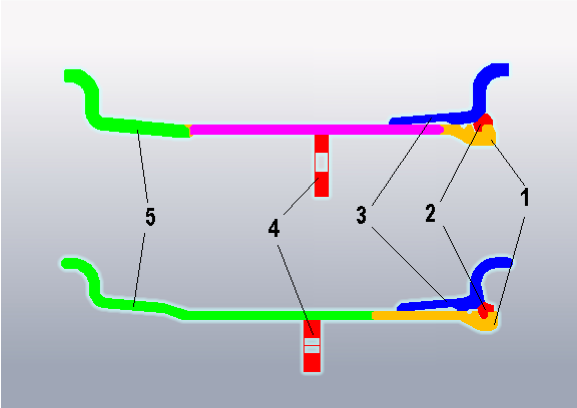

There are different kinds of construction equipment rims, defined by the structure construction equipment rim is often 3-PC rim or 5-PC rim, also called there-piece rim or five-piece, it is made by different pieces like rim base, lock ring, flange, side ring and bead seat.

Defined by structure, construction equipment rim can be classified as below.

3-PC rim, also called there-piece rim, is made by three pieces which are rim base, lock ring and flange. 3-PC rim is normally size 12.00-25/1.5, 14.00-25/1.5 and 17.00-25/1.7. 3-PC is medium weight, medium load and high speed, it’s widely used in construction equipments like graders, small & middle wheel loaders and forklifts. It can load much more than 1-PC rim but there’s a limits of the speed.

5-PC rim, also called five-piece rim, is made by five pieces which are rim base, lock ring, bead seat and two side rings. 5-PC rim is normally size 36.00-25/1.5, 13.00-25/2.5, 19.50-25/2.5, 22.00-25/3.0, 24.00-25/3.0, 25.00-25/3.5, 13.00-33/2.5, up to 19.50-49/4.0. 5-PC rim is heavy weight, heavy load and low speed, it’s widely used in construction equipments and mining equipments, like dozers, big wheel loaders, articulated haulers, dump trucks and other mining machines.

What is construction equipment rim used for?

The popular sizes for construction equipment rims are 12.00-25/1.5, 14.00-25/1.5, 17.00-25/1.7, 19.50-25/2.5, 22.00-25/3.0,24.00-25/3.0 and 25.00-25/3.5. HYWG OTR rim can be used for most of construction equipments such as:

(1) Backhoe loader

(2) Grader

(3) Wheel Loader

(4) Articulated Hauler

Popular Models We Offer

Rim size	Rim type	Tire size	Machine model	Machine type
14.00-25/1.5	3-PC	17.5R25	CAT 140M	Grader
14.00-25/1.5	3-PC	17.5R25	CASE 521	Small Wheel Loader
17.00-25/1.7	3-PC	20.5R25	CAT 938K	Small Wheel Loader
17.00-25/1.7	3-PC	20.5R25	CAT924H	Small Wheel Loader
17.00-25/1.7	3-PC	20.5R25	CAT930K	Small Wheel Loader
17.00-25/1.7	3-PC	20.5R25	CAT 938K	Small Wheel Loader
17.00-25/1.7	3-PC	20.5R25	CASE 721	Small Wheel Loader
17.00-25/1.7	3-PC	20.5R25	Volvo L70/90	Small Wheel Loader
17.00-25/1.7	3-PC	20.5R25	Komatsu WA270	Small Wheel Loader
19.50-25/2.5	5-PC	23.5R25	CAT 972	Middle Wheel Loader
19.50-25/2.5	5-PC	23.5R25	CASE 821	Middle Wheel Loader
19.50-25/2.5	5-PC	23.5R25	Volvo L110/120	Middle Wheel Loader
22.00-25/3.0	5-PC	29.5R25	CAT 966	Middle Wheel Loader
22.00-25/3.0	5-PC	29.5R25	CAT980 G/H/K/M	Middle Wheel Loader
25.00-25/3.5	5-PC	29.5R25	Komatsu HM 400-3	Middle Wheel Loader
25.00-25/3.5	5-PC	29.5R25	Volvo A40	Articulated Hauler
25.00-29/3.5	5-PC	29.5R29	CAT 982M	Large Wheel Loader
27.00-29/3.0	5-PC	33.5R29	Volvo A60H	Articulated Hauler

Our advantages of construction equipment rim?

(1) HYWG is the off the road rim whole industry chain manufacturing enterprise.

(2) We can offer not only rim complete but also rim components like lock ring, side ring, flanges and bead seats.

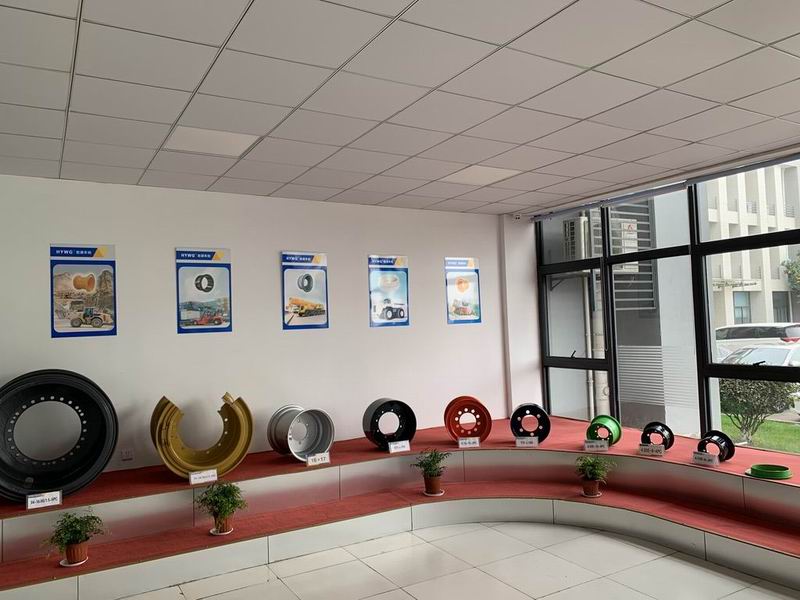

(3) We have full range of products including industrial 1-PC rim, forklift rim, 3-PC rim and 5-PC rims, we can supply all kinds of OTR rims.

(4) Our quality has been proven by big OEM like Caterpillar, Volvo, Liebherr, John Deere and XCMG.

(5) Other than above OEM customers we can also supply popular OTR machines like Komatsu, Hitachi, Doosan, Bell and JCB.

Our product shown by customers:

Our latest OTR rim product is 36.00-25/1.5 designed for Volvo A25/30 for soft ground application in Europe.

We do tire and rim assembly for Volvo OE wheel loader.

Production Process

1. Billet

4. Finished Product Assembly

2. Hot Rolling

5. Painting

3. Accessories Production

6. Finished Product

Product Inspection

Dial indicator to detect product runout

External micrometer to detect internal micrometer to detect the inner diameter of the center hole

Colorimeter to detect paint color difference

Outside diametermicromete to detect position

Paint film thickness meter to detect paint thickness

Non-destructive testing of product weld quality

Company Strength

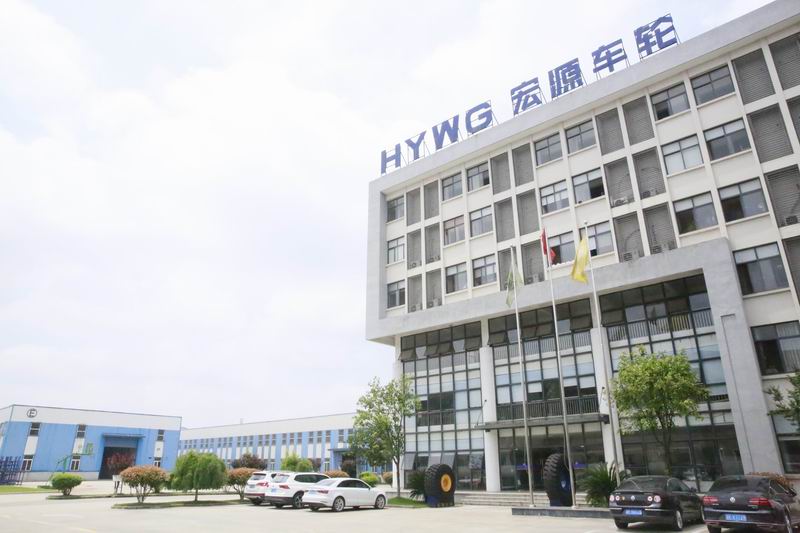

Hongyuan Wheel Group(HYWG) was founded in 1996,it is professional manufacturer of rim for all kinds of off-the-road machinery and rim components,such as construction equipment, mining machinery, forklifts,industrial vehicles,agricultural machinery.

HYWG has advanced welding production technology for construction machinery wheels at home and abroad, an engineering wheel coating production line with the international advanced level, and an annual design and production capacity of 300,000 sets,and has a provincial-level wheel experiment center, equipped with various inspection and testing instruments and equipment, which provides a reliable guarantee for ensuring product quality.

Today it has more than 100 milion USD assets,1100 employees,4 manufacturing centers.Our business covers more than 20 countries and regions around the world, and the quality of all products has been recognized by Caterpillar, Volvo, Liebherr, Doosan, John Deere, Linde, BYD and other global oems.

HYWG will continue to develop and innovate, and continue to serve the customers wholeheartedly to create a brilliant future.

Why Choose Us

Product

Our products include the wheels of all off-road vehicles and their upstream accessories, covering many fields, such as mining, construction machinery, agriculture industrial vehicles, forklifts, etc.

Quality

The quality of all products has been recognized by Caterpillar, Volvo, Liebherr, Doosan, John Deere, Linde, BYD and other global oems.

Technology

We have a R&D team composed of senior engineers and technical experts,focusing on the research and application of innovative technologies, and maintaining a leading position in the industry.

Service

We have established a perfect after-sales service system to provide timely and efficient technical support and after-sales maintenance to ensure a smooth experience for customers during use.
