Construction Equipments OTR rim for Articulated Hauler China OEM manufacturer
What is OTR rim?
OTR rim so called off the road rim is the wheel rim for off the road vehicles like wheel loaders, dump trucks, graders, articulated haulers, dozers and other types of construction equpments, mining machines and industrial vehicles. The OTR rim is asselmbled together with OTR tires to take massive weight of vehicles and roll through rough conditions. OTR rim is critical for vehicles lifetime and operating efficiency, a good OTR rim can carry massive weight and help the vehicles run smoothly and efficiently. It’s very important for a OTR vehicle to have strong, trusted and reliably OTR rim. Our product HYWG OTR rim is a good choice for vehicle owners because we have proven quality, good price and full range of rims for most of the OTR vehicles. We are the OEM rim manufacturer for the big names like Caterpillar, Volvo, Liebherr, John Deere and XCMG. We can also supply rims for Komatsu, Hitachi, Doosan, Bell and JCB.
How many kinds of OTR rims?

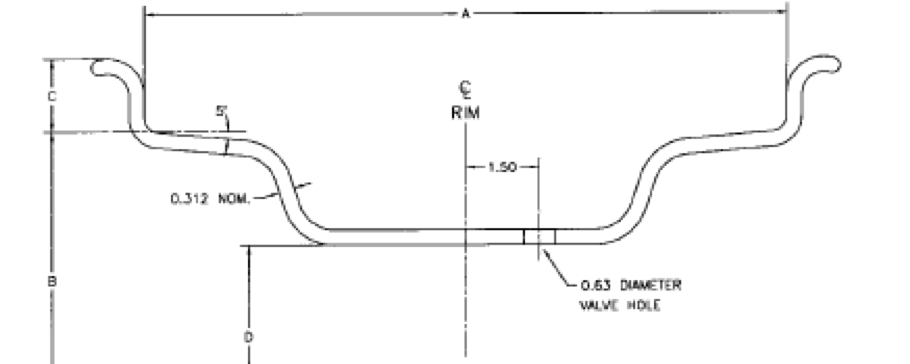

There are different kinds of OTR rims, defined by the structure it can be classified as 1-PC rim, 3-PC rim and 5-PC rim. 1-PC rim is widely used for many kinds of industrial vehicles like crane, wheeled excavators, tele-handlers, trailers. 3-PC rim is mostly used for graders, small & middle wheel loaders and forklifts. 5-PC rim is used for heavy duty vehicles like dozers, big wheel loaders, articulated haulers, dump trucks and other mining machines.
There are also other type of rims, 2-PC and 4-PC rims are used a lot for forklift machine, so as the split rims; 6-PC and 7-PC rims are used occasionally for giant mining machines, rim size 57” and 63” for example. The 1-PC, 3-PC and 5-PC are the mainstream of OTR rim, they are widely used in different type of off the road vehicles.
What is the OTR rim used for?
Our OTR rim can be used for most of construction equipment and mining vehicles such as:
(1) Tele handler
(2) Forklift
(3) Grader
(4) Wheel Loader
(5) Articulated Hauler
(6) Dump Truck
Model Examples We Offer
| Rim size | Rim type | Tire size | Machine model | Machine type |
| 14.00-25/1.5 | 3-PC | 17.5R25 | CAT 140M | Grader |
| 14.00-25/1.5 | 3-PC | 17.5R25 | CASE 521 | Small Wheel Loader |
| 17.00-25/1.7 | 3-PC | 20.5R25 | CAT 938K | Small Wheel Loader |
| 17.00-25/1.7 | 3-PC | 20.5R25 | CAT924H | Small Wheel Loader |
| 17.00-25/1.7 | 3-PC | 20.5R25 | CAT930K | Small Wheel Loader |
| 17.00-25/1.7 | 3-PC | 20.5R25 | CAT 938K | Small Wheel Loader |
| 17.00-25/1.7 | 3-PC | 20.5R25 | CASE 721 | Small Wheel Loader |
| 17.00-25/1.7 | 3-PC | 20.5R25 | Volvo L70/90 | Small Wheel Loader |
| 17.00-25/1.7 | 3-PC | 20.5R25 | Komatsu WA270 | Small Wheel Loader |
| 19.50-25/2.5 | 5-PC | 23.5R25 | CAT 972 | Middle Wheel Loader |
| 19.50-25/2.5 | 5-PC | 23.5R25 | CASE 821 | Middle Wheel Loader |
| 19.50-25/2.5 | 5-PC | 23.5R25 | Volvo L110/120 | Middle Wheel Loader |
| 22.00-25/3.0 | 5-PC | 29.5R25 | CAT 966 | Middle Wheel Loader |
| 22.00-25/3.0 | 5-PC | 29.5R25 | CAT980 G/H/K/M | Middle Wheel Loader |
| 25.00-25/3.5 | 5-PC | 29.5R25 | Komatsu HM 400-3 | Middle Wheel Loader |
| 25.00-25/3.5 | 5-PC | 29.5R25 | Volvo A40 | Articulated Hauler |
| 25.00-29/3.5 | 5-PC | 29.5R29 | CAT 982M | Large Wheel Loader |
| 27.00-29/3.0 | 5-PC | 33.5R29 | Volvo A60H | Articulated Hauler |
Our advantages of OTR rim?
(1) HYWG is the off the road rim whole industry chain manufacturing enterprise.
(2) We can offer not only rim complete but also rim components like lock ring, side ring, flanges and bead seats.
(3) We have full range of products including industrial 1-PC rim, forklift rim, 3-PC rim and 5-PC rims, we can supply all kinds of OTR rims.
(4) Our quality has been proven by big OEM like Caterpillar, Volvo, Liebherr, John Deere and XCMG.
(5) Other than above OEM customers we can also supply popular OTR machines like Komatsu, Hitachi, Doosan, Bell and JCB.
Our product shown by customers:
Our latest OTR rim product is 36.00-25/1.5 designed for Volvo A25/30 for soft ground application in Europe.
Our OTR rim is shown on XCMG largest wheel loader and latest dump truck in 2020 Bauma exhibition.
Production Process
1. Billet
4. Finished Product Assembly
2. Hot Rolling
5. Painting
3. Accessories Production
6. Finished Product
Product Inspection
Dial indicator to detect product runout
External micrometer to detect internal micrometer to detect the inner diameter of the center hole
Colorimeter to detect paint color difference
Outside diametermicromete to detect position
Paint film thickness meter to detect paint thickness
Non-destructive testing of product weld quality

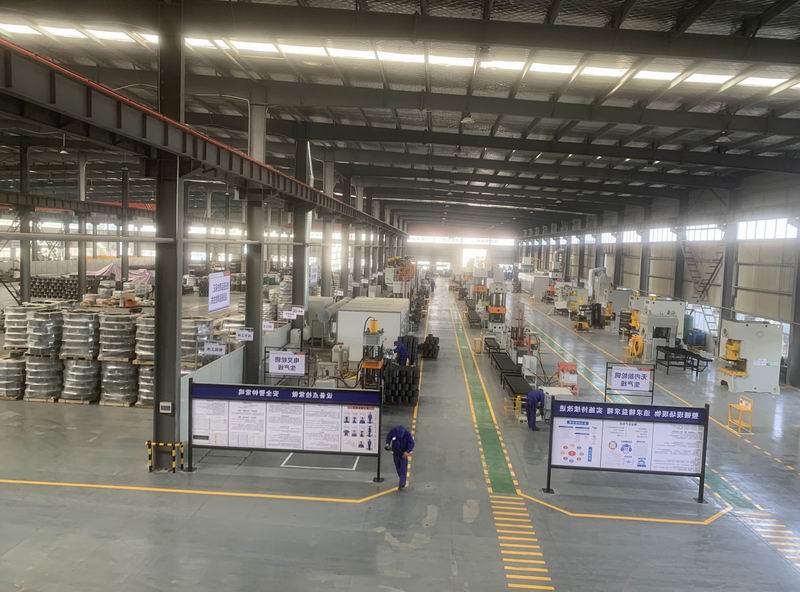

Company Strength
Hongyuan Wheel Group(HYWG) was founded in 1996,it is professional manufacturer of rim for all kinds of off-the-road machinery and rim components,such as construction equipment, mining machinery, forklifts,industrial vehicles,agricultural machinery.
HYWG has advanced welding production technology for construction machinery wheels at home and abroad, an engineering wheel coating production line with the international advanced level, and an annual design and production capacity of 300,000 sets,and has a provincial-level wheel experiment center, equipped with various inspection and testing instruments and equipment, which provides a reliable guarantee for ensuring product quality.
Today it has more than 100 milion USD assets,1100 employees,4 manufacturing centers.Our business covers more than 20 countries and regions around the world, and the quality of all products has been recognized by Caterpillar, Volvo, Liebherr, Doosan, John Deere, Linde, BYD and other global oems.
HYWG will continue to develop and innovate, and continue to serve the customers wholeheartedly to create a brilliant future.
Why Choose Us
Our products include the wheels of all off-road vehicles and their upstream accessories, covering many fields, such as mining, construction machinery, agriculture industrial vehicles, forklifts, etc.
The quality of all products has been recognized by Caterpillar, Volvo, Liebherr, Doosan, John Deere, Linde, BYD and other global oems.
We have a R&D team composed of senior engineers and technical experts,focusing on the research and application of innovative technologies, and maintaining a leading position in the industry.
We have established a perfect after-sales service system to provide timely and efficient technical support and after-sales maintenance to ensure a smooth experience for customers during use.
Certificates
Volvo Certificates
John Deere Supplier Certificates
CAT 6-Sigma Certificates
Exhibition
AGROSALON 2022 in Moscow
Mining World Russia 2023 exhibition in Moscow
BAUMA 2022 in Munich
CTT Exhibition in Russia 2023
2024 France INTERMAT Exhibition
2024 CTT Exhibition in Russia
